2 IN 1 Commercial Soda & Beer Dispenser
In the Restaurant
In the buffet, the supply of the drinks is a must. Beer and carbonated drinks increase the diversity of the food choices and satisfy the customers' different preference.
In the Hotel
Hotel is a place to make all customers relaxing. Having an iced beer or carbonated water to release stresses after a tiring day. It's not simply delightful, but also flavorful to enjoy a glass of refreshing drink in the end of a day.
In the Bar
Carbonated water is the base for various cocktail. It can also be the ingredient for different types of liquor. Even in the day without liquor, a glass of carbonated water is always the best solution.
Product Appearance
Invention Patent
3D Headrest(optional accessory): Fiber glass reinforced polyamide frame with foam filling and fabric cover With height and angle adjustable function.
Back: Fiber glass reinforced polyamide frame with molded foam filling & fabric cover and with height adjustable function
Armrest (optional accessory): 2 types for options
- 2D: with height adjustable function
- 3D: with height, front-back, and right-left adjustable function
Seat: Plywood upholstered with molded foam filling & fabric cover.
Mechanism: with tilt, 3 position lock, tilt tension control and seat sliding function
Base with two type for options:
- Radius 350mm nylon base
- Radius 350mm aluminum alloy base
Casters: nylon casters for smooth rolling to anywhere

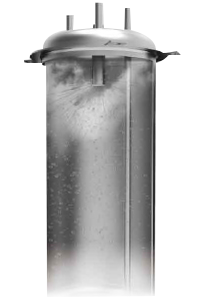

Carbonated Water Technology
Newly adopted high pressure water mist jet: increasing the mixing area of cold water and carbon dioxide, speeding up the dissolving rate, producing high quality carbonated fizzy water. |
 |
 |

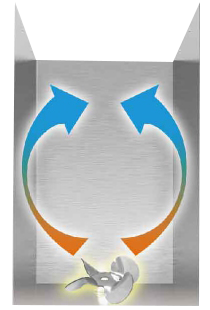

Low Temperature Stirring
Patented bottom stirring device: by stirring iced water well in the bottom of the tank, the water can stay at the temp below 1℃, stabilizing the instant cooling temp to ensure the output quality of beer and soda water. |

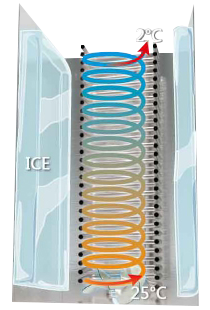

Instant Cooling And Refrigeration Technoligy
Ice Bank: the microcomputer controls the thickness of ice layer, and store the refrigeration energy in the cold tank. The room temperature water goes through the stainless steel cooling coil to exchange the refrigeration energy, which enables the machine to output 40L of low temp (below 4℃) beer and soda water per hour. |
 |
| Model |
HS-BS60L |
| Voltage |
AC 110V/50Hz
AC220V/50-60Hz |

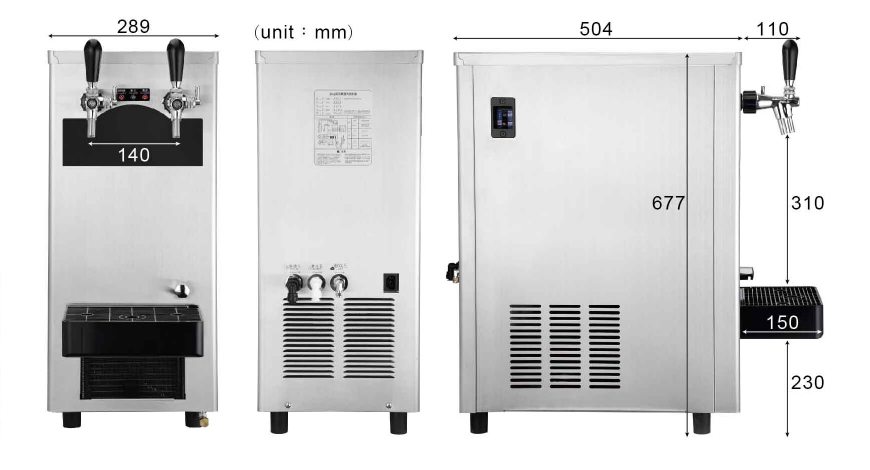

| Dimension |
W289 x D712 H677mm (Not including faucet, Water tray) |
| Cooling Power |
Power consumptiom 300W |
| Capacity |
Cold water 15L / Sparkling water 1L |
| Weight |
N.W. 40.5kg / G.W. 43kg |
| Beer Capability |
2-4℃ Output per hour 80 glasses / 40000cc |
| Soda Capability |
2-4℃ Output per hour 120 glasses / 30000cc |
| Cooling Capability |
Cold water ≤2℃, Cooling time ≤180min
Room temperature 25℃, Initial temperature25℃ |
| Safety device |
Electricity leakage detector at the side, power cut off when leakage. |
| Power supply |
3 core power supply, 3 meters |
| Faucet control outlet |
Press the switch downwards for taking water, push back when finished. |
